Pass box

PASS BOX - A SAFE MATERIAL TRANSFER SOLUTION FOR EFFECTIVE CROSS-CONTAMINATION CONTROL

In GMP-ISO cleanroom systems, the transfer of materials, tools, and semi-finished products between areas with different cleanliness classifications requires strict control. The cleanroom pass box is a dedicated transfer device designed to minimize cross-contamination and ensure that the production environment consistently complies with cleanroom standards.

ACT Cleanroom - ACT International Technical Equipment Company Limited supplies both standard pass boxes and customized pass boxes, meeting the diverse requirements of pharmaceutical, food, electronics, and medical manufacturing facilities.

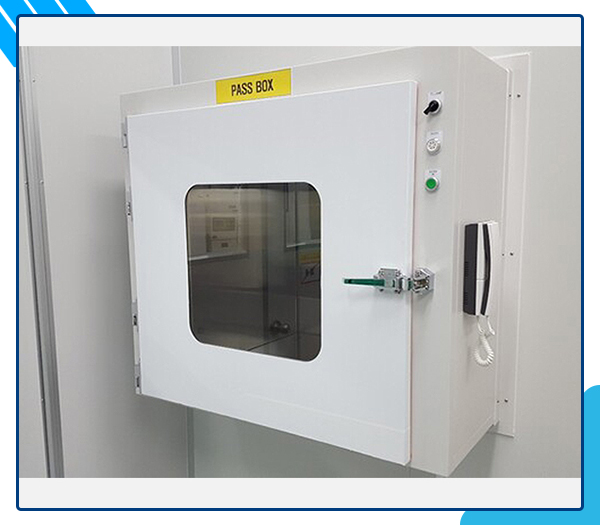

What is a cleanroom pass box?

A cleanroom pass box is a transfer chamber installed between 2 cleanroom areas or between a cleanroom and a non-clean area. It is used to transfer materials, tools, and supplies without opening cleanroom doors, thereby significantly reducing the ingress of dust particles and microorganisms.

Types of cleanroom pass boxes

Mechanical pass box

• Equipped with a mechanical door interlock system.
• Suitable for areas where clean airflow is not required.
• Cost-effective and simple to operate.

Electronic pass box

• Equipped with an electronic interlock system.
• Provides a higher level of operational safety and control.
• Commonly used in GMP-compliant cleanrooms.

Dynamic pass box

• Integrated fan and HEPA filter.
• Removes surface contaminants from items before transfer.
• Suitable for environments requiring high cleanliness levels.

Key advantages of ACT cleanroom pass boxes

Effective cross-contamination prevention

• Dual-door interlock mechanism.
• Prevents simultaneous opening of both doors.

Optimized and flexible design

• Dimensions customized according to application requirements.
• Flush-mounted or surface-mounted wall installation.

Cleanroom-approved materials

• SUS 304 / SUS 201 stainless steel.
• Smooth surfaces, easy to clean, corrosion-resistant, and antibacterial.

Designed in accordance with GMP and ISO requirements

• Suitable for pharmaceutical, cosmetic, food, and medical production environments.

Operating principle of the pass box

• Open the door on Area A and place the materials inside the pass box.
• Close the door - the interlock system is activated.
• For dynamic pass boxes, clean air is blown through a HEPA filter to remove surface contaminants.
• Open the door on Area B and retrieve the materials.

☞ This procedure helps maintain pressure differentials and cleanliness classifications between adjacent areas.

Reference technical specifications

• Material: SUS 304 / SUS 201 stainless steel
• Filter: HEPA H13 (for dynamic pass box)
• Interlock system: Mechanical or electronic
• Power supply: 220V / 50Hz
• Dimensions: Customized according to project requirements

(ACT designs and manufactures pass boxes on a project-by-project basis.)

Applications of cleanroom pass boxes

• Pharmaceutical and cosmetic manufacturing plants.
• Food and beverage processing facilities.
• Medical device manufacturing.
• Electronics and semiconductor production.
• Laboratories and hospitals.

Why choose ACT cleanroom pass boxes?
☑ Direct manufacturer - no intermediaries.
☑ Professional consultation based on cleanroom layout and cleanliness class.
☑ Precision fabrication with high-quality finishing.
☑ Long-term warranty and maintenance services.
☑ Extensive experience in large-scale cleanroom projects.
